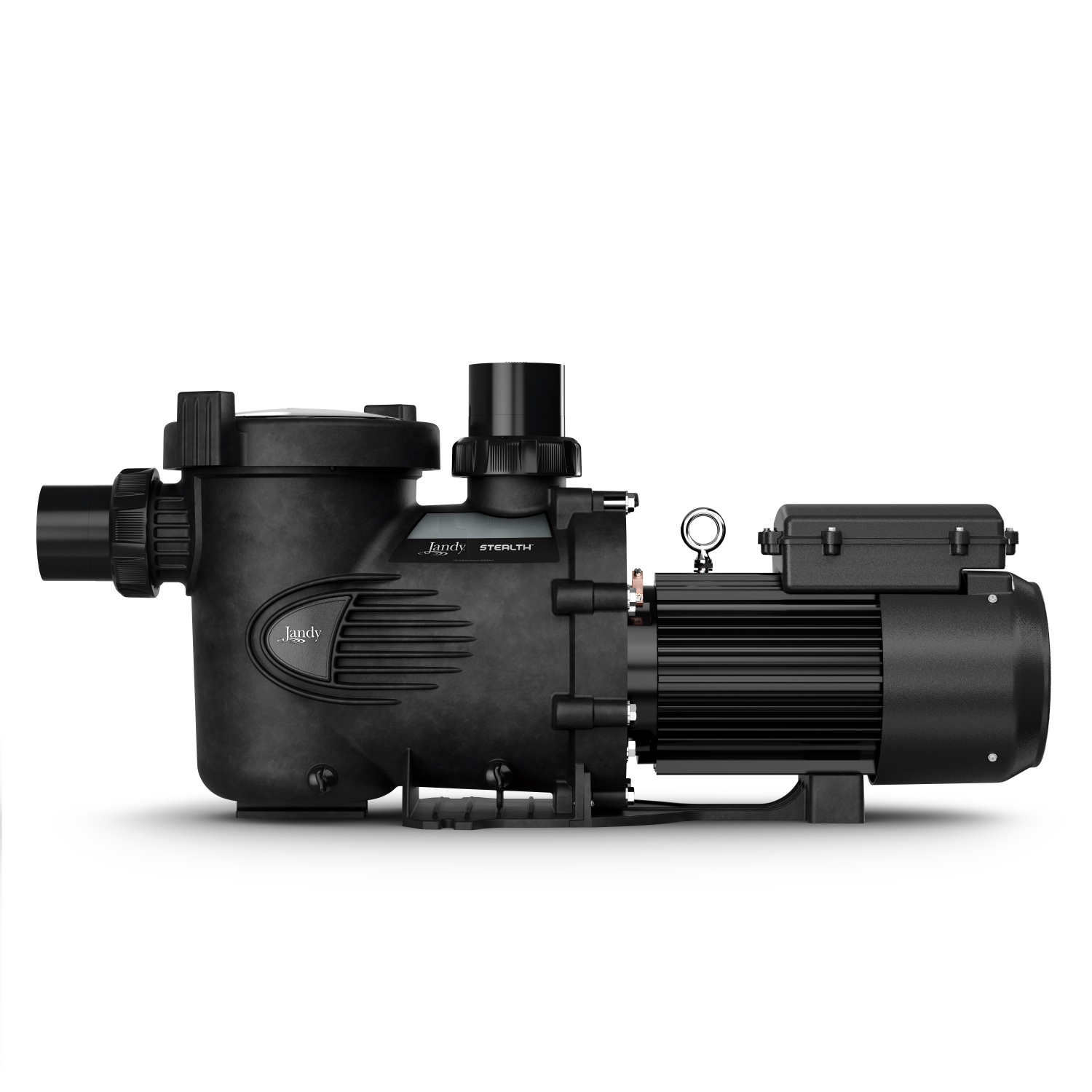

Jandy Commercial Pump Stealth 5 HP model - 3 Phase

## Stealth 5 HP Commercial-Grade High-Performance Pool Pump

The Stealth™ 5 HP is a heavy-duty, commercial-grade circulation pump engineered to deliver superior hydraulic performance, peak energy efficiency, and whisper-quiet operation. Specifically designed as an ultra-efficient high-head pump, it utilizes proprietary "Quiet Technology" to drastically dampen structural motor harmonics and fluid turbulence while effortlessly moving massive volumes of water.

Equipped with an advanced industrial-tier TEFC (Totally Enclosed Fan-Cooled) motor, this pump provides relentless, continuous-duty filtration and water feature operation for large-scale commercial facilities, high-demand residential estates, and complex multi-feature aquatic complexes.

### Key Features & Engineering Excellence
*   **Industrial TEFC Motor Construction:** The fully enclosed fan-cooled housing isolates sensitive internal motor windings from chemical vapors, salt air, and heavy moisture, maximizing operational lifespan.
*   **High-Head Hydraulic Architecture:** Tailored to overcome high dynamic head resistance in complex plumbing configurations, making it the premier choice for large filtration loops, commercial chlorination arrays, and massive rock waterfalls.
*   **Integrated Oversized Strainer:** Features an integrated, high-capacity debris basket that extends maintenance intervals and protects downstream plumbing lines from clogging.
*   **Heavy-Duty Large-Bore Plumbing:** Equipped with oversized 2.5" x 3" suction and discharge ports to reduce friction loss and maximize continuous flow rates.

### Technical Specifications
*   **Horsepower (THP):** 5.0 HP
*   **Motor Design Type:** TEFC (Totally Enclosed Fan-Cooled)
*   **Electrical Phase:** **3-Phase Industrial Power Required**
*   **Voltage Support:** 208-230V / 460V AC
*   **Amperage / Power Draw:** 15.5-15.0A / 7.5A
*   **Speed Rating:** Single-Speed (3,450 RPM)
*   **Port Connection Size:** 2.5-Inch x 3-Inch Slip Unions *(Heavy-duty installation unions included)*
*   **Shipping Weight:** 95 lbs (Heavy freight pallet delivery)
*   **Overall Component Length:** 33-1/8 Inches

---

### ⚠️ Critical Electrical & Warranty Guidelines
*   **Electrical Warning (3-Phase Power):** This is a high-capacity **3-Phase industrial mechanical unit**. It is **not compatible** with standard single-phase residential electrical panels. Verification of onsite 3-Phase 208-230V or 460V availability by a certified commercial electrician is required prior to purchase.
*   **Product Warranty:** Backed by a 1-Year Manufacturer’s Limited Warranty covering both replacement factory components and authorized warranty field labor from the original purchase date.
*   **Terms of Validity:** This pump must be wired and plumbed directly to a valid commercial or residential pool/spa installation. Coverage does not extend to dry-running damage, catastrophic voltage imbalances, incorrect phase wiring, or ice expansion from incomplete winterization. Professional installation by a licensed pool technician is mandatory to validate factory claims.

---

> 📞 **Bulk Logistics & Commercial Verification Inquiry:**
> Deploying a 5 HP 3-Phase commercial pump requires matching voltage drops, electrical switchgear, and pipe friction schedules.
>
> Please contact our specialized commercial support team directly to confirm real-time stock levels, freight shipping routing options, or to verify technical engineering specs for your equipment pad layout.
